SVM - Current Transformer

Various Types:

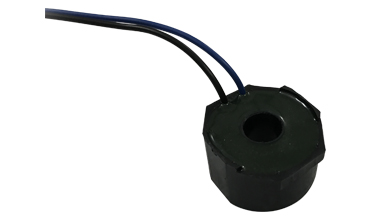

Conventional Current Transformer

Hall Effect Current Transformer

Rating:

PCB mountable current sensor up to 25 Amps

Measure AC currents up to 50 kHz

Standards:

EN 50178, IEC 61010-1

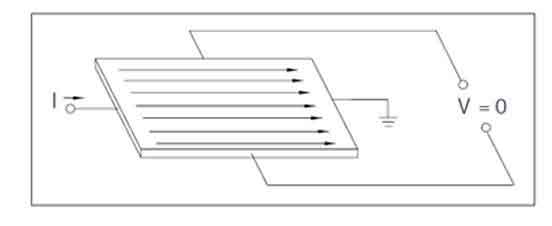

Principle of Hall Effect:

When a current-carrying conductor is placed into a magnetic field, a voltage is generated perpendicular to both the current and the field. This principle is known as the Hall Effect.

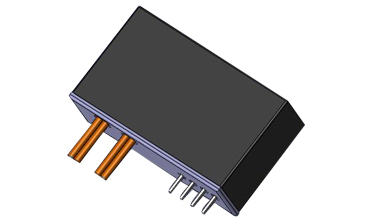

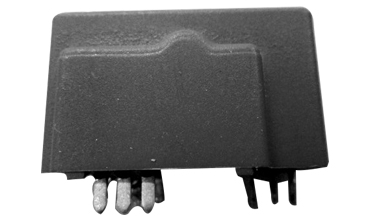

Hall Effect Current Transformer

Advantages of Hall Effect Current Transformer:

Measure AC currents up to 50 kHz.

Sensor measures AC & DC currents

Linear output over the entire range (better than 1% accuracy from 100 mA to 25 amps)

High speed sensing

Immune to most types of external disturbance.

Power consumption is very low.

Works on a wide supply voltage.

Applications:

Current sensing, Power sensing (watt-hour metering), Current trip-point detection, Strain gauge, magnetically biased sensing applications, Ferrous metal detectors, Proximity sensing.

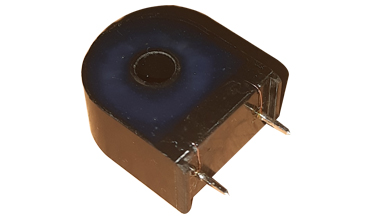

AC PCB mounting current transformer 50/60Hz

Model Turns Ratio Operating Current Range Accuracy Class Dimension Attachment
ID (Ø) OD (Ø) L (mm) H (mm)
SVM CT1005 1000:1 0-5A 0.2 5 18.2 22.2 10.2 5AMP CT
SVM CT1010 1000:1 0-10A 0.2 5 18.2 22.2 10.2 10AMP CT
