SVM - Magnetics for Defence Application
FEATURES:
Single Phase Low Voltage Transformers are designed for working at an input voltage of 40V, 400Hz.
Transformers having six secondary output windings to meet different voltage requirements.
Transformers are designed to work in an high operating temperature in the range of -60 to +85deg C and high Humidity climatic conditions in the range of 98%.
These Transformers are majorly used for applications in areas with boreal climate like Defence
These Transformers are equivalent to the Russian Transformers

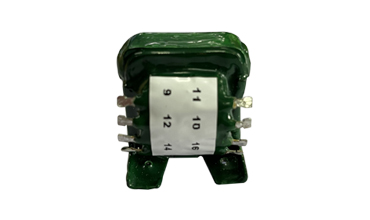

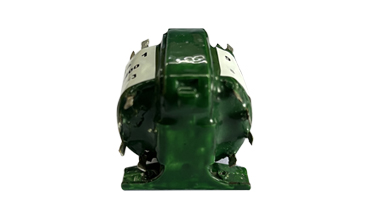

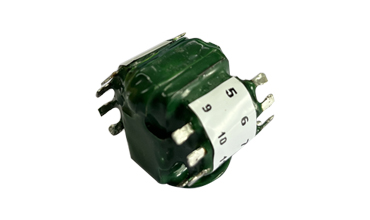

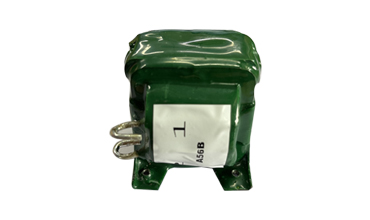

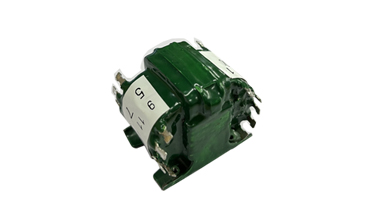

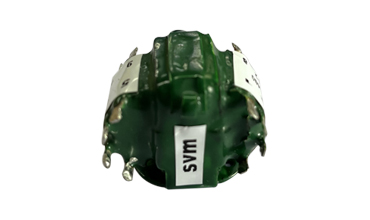

| S.No | SVM Part Number | RUSSIAN Part Number For Cross Reference | Type | Rating | Specification | |
|---|---|---|---|---|---|---|
| 1 | 91048 | TPP-6-40-400 | Tᴨᴨ-6-40-400 | Transformer | 3.5VA |  91048 Pdf |
| 2 | 91047 | TPP-229-40-400 | Tᴨᴨ-229-40-400 | Transformer | 25VA | 91047 Pdf |
| 3 | 98052 | Tᴨᴨ-213-40-400 | Tᴨᴨ-213-40-400 | Transformer | 6VA | 98052 Pdf |
| 4 | 98055 | TPP-37-40-400 | Tᴨᴨ-37-40-400 | Transformer | 12 VA | 98055 Pdf |
| 5 | 98057 | TPP-131-40-400 | Tᴨᴨ-131-40-400 | Transformer | 12 VA | 98057 Pdf |
| 6 | 98058 | TPP-10-40-400 | Tᴨᴨ-10-40-400 | Transformer | 1.65 VA | 98058 Pdf |
| 7 | 98059 | TAN-86-40-400U | TAH-86-40-400y | Power Transformer | 112 VA | 98059 Pdf |
| 8 | 98060 | TPP-40-40-400B | Tᴨᴨ-40-40-400B | Transformer | 18.8VA | 98060 Pdf |
| 9 | 98056 | L56.0.0005.16.5 | Д56.0.0005.16.5 | Power Inductor | 790uH | 98056 Pdf |
