SVM - Available Bobbin Geometry

Bobbins for High Frequency SMPS Transformers with PCB Mountable PIN type Bobbins both Thermoset and Thermoplastic.

Inhouse Facility: Bobbin Design, Mold Design, Bobbin Manufacturing

Any Geometry can be developed as per customer requirement.

EE/EF
PQ
UT
Horizontal
Vertical
S.No Bobbin Type Vertical / Horizontal Size Description Part code Attachment

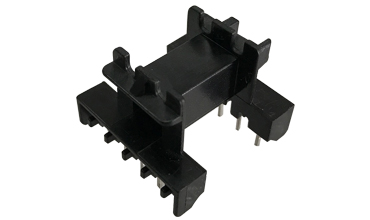

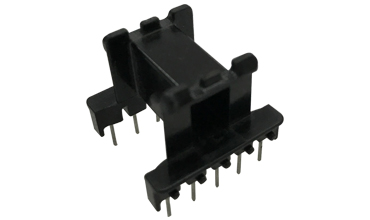

1 EE Horizontal EE15/7/4 EE15/7/4 , 9 pin Horizontal BOBBIN BA426 BA426
2 EE Horizontal EE19/8/ 5 EE - 19/8/5, 8 PIN (H) BOBBIN BA270 BA270
3 EE Horizontal EE19/8/5 EE - 19/8/5, 2 SEC, 10 PIN (H) BOBBIN BA269 BA269
4 EF Horizontal EF20/10/9 EF20/10/9, 8 pin , Single sec horizontal bobbin BA316 BA316
5 EF Horizontal EF20/10/9 EF20/10/9, 8 PIN , 2 Sec Horizontal Bobbin BA315 BA315
6 EF Horizontal EF20/10/9 EF- 20/10/9, 8PIN, 2Sec Horizontal Bobbin BA299 BA299
7 EF Horizontal EF20/10/9 EF- 20/10/9, 8PIN, 3Sec Horizontal Bobbin BA317 BA317
8 EF Horizontal EF25/13/7 EF - 25/13/7, 8 PIN (H) BOBBIN BA271 BA271
9 EF Horizontal EF25/13/7 EF-25/13/7, 10 PIN Horizontal BOBBIN BA350 BA350
10 EF Horizontal EF25/13/7 EF - 25/13/7, 10 PIN Horizontal Bobbin BA272 BA272
11 EF Horizontal EF25/13/7 EF25/13/7, 12 PIN , horizontal Bobbin BA535 BA535
S.No Bobbin Type Vertical / Horizontal Size Description Part code Attachment

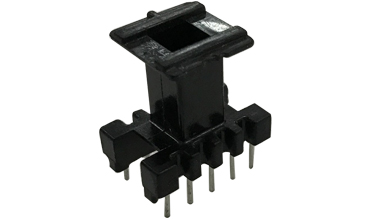

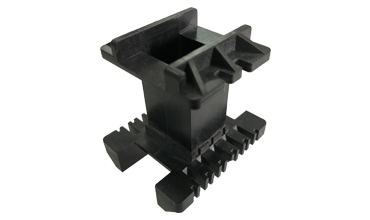

1 EE Vertical EE10/5.5/5 EE10/5.5/5 , 8 PIN , VERTICAL BOBBIN BA369 BA369
2 EE Vertical EE13/6/6 EE13/6/6, 10Pin , Vertical Bobbin, 8.5mm pitch BA248 BA248
3 EE Vertical EE16/7/5 EE16/7/5 , 10mm pitch , 4 pin Vertical bobbin BA244-1 BA244-1
4 EE Vertical EE20/10/6 EE20/10/6 -10 Pin Vertical Bobbin BA199 BA199
5 EE Vertical EE55/28/21 EE55/28/21 - 12 Pin Vertical Bobbin BA653 BA653
Vertical
S.No Bobbin Type Vertical / Horizontal Size Description Part code Attachment

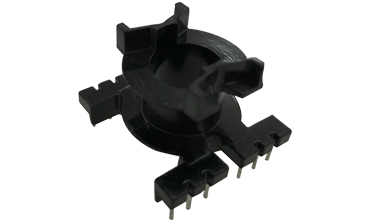

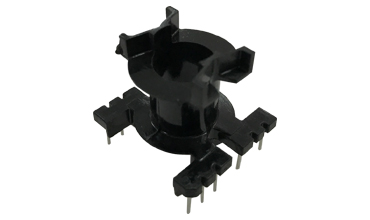

1 PQ Vertical PQ 26 *25 PQ26*25,12 pin, Vertical Bobbin , Height 24.5mm BA378 BA378
2 PQ Vertical PQ 26 * 25 PQ26*25, 12pin , vertical bobbin, height 27.5mm BA341 BA341
Vertical
S.No Bobbin Type Vertical / Horizontal Size Description Part code Attachment

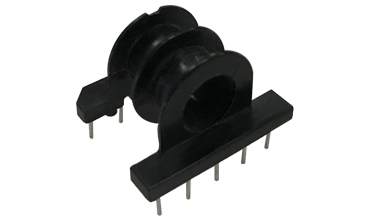

1 UT Vertical UT20 UT 20 BOBBIN & UT 20 BASE 4 PIN BA135 & BB052 BA135 & BB052
